| Supported CPU |
Supports AMD Socket AM5 Ryzen 8000 & 7000 Series Processors |
| Chipset |
AMD B650 |
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor |
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - 2oz Copper PCB |
| Audio |
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| PCI |
CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
| Type |
DDR5 |
| Slots |
4 DIMMs |
| Supported Memory |
- Dual Channel DDR5 Memory Technology - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC) - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Maximum Memory |
128GB |
| Graphics |
Integrated AMD RDNA 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| HDMI |
1 x HDMI Port |
| Display Port (s) |
1 x DisplayPort 1.4 |
| USB (s) |

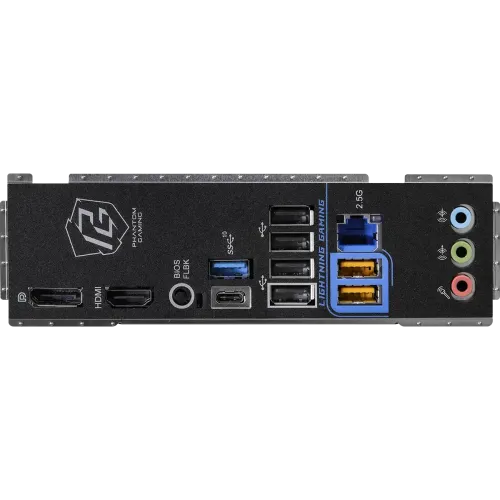

- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) |
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Supported Storage |
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 4 x SATA3 6.0 Gb/s Connectors |
| RAID |
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| Internal I/O Ports |
- 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Su |
| TPM (Trusted Platform Module ) |
1 x SPI TPM Header |
| Special Features |
Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 12+2+1 Power Phase, 50A Dr.MOS with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN - ASRock Lightning Gaming Ports EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Bundled Software |
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Manufacturing Warranty |
3 Years |
