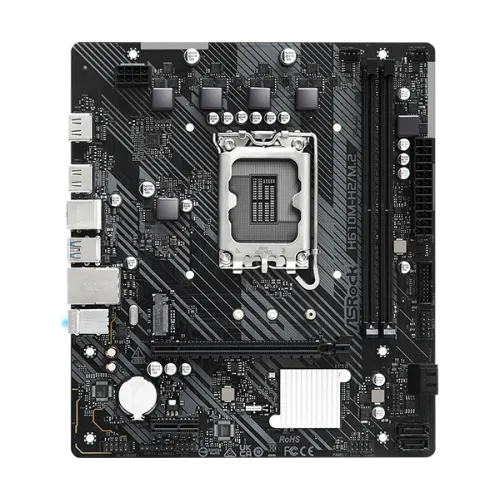

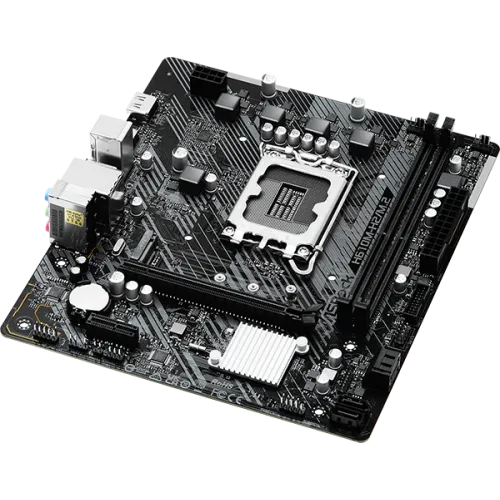

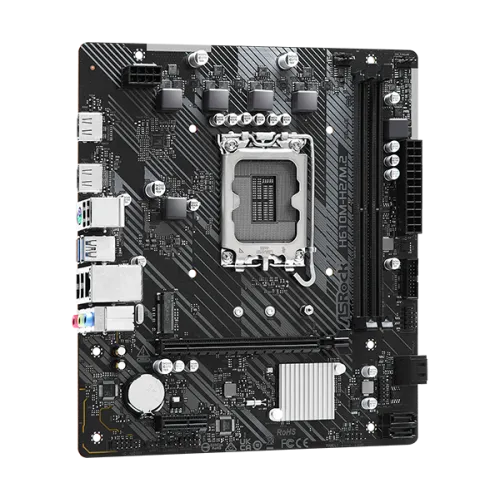

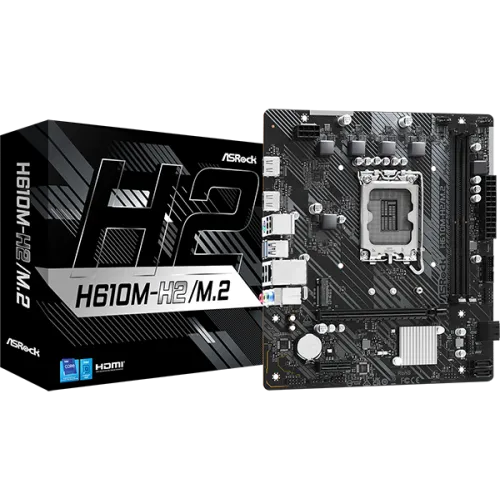

ASROCK H610M-H2/M.2 14th, 13th and 12th Gen mATX DDR4 Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584089 Brand: ASRock

Key Features

Key Features Model: H610M-H2/M.2 Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supports: Up to DDR4 3200MHz Graphics Output: 2x HDMI Features: Realtek ALC897 7.1 CH HD Audio Codec

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset Intel H610
BIOS - 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Audio - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
PCI - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
M.2 Socket - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
Type Dual Channel DDR4 Memory Technology
Slots 2 x DDR4 DIMM Slots
Supported Memory - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0
Maximum Memory 64GB
Graphics - Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
HDMI 2 x HDMI Port

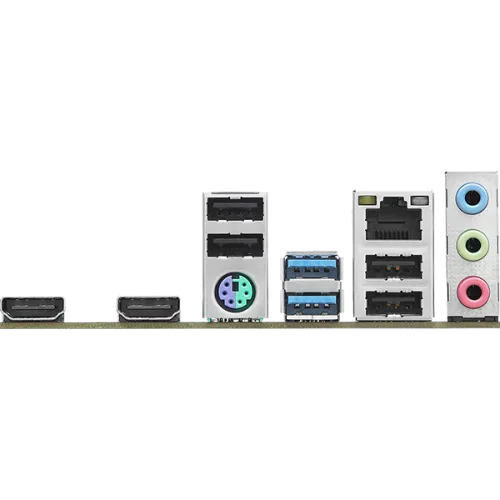

USB (s) - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front)
LAN Port (s) - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H
Supported Storage - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
Internal I/O Ports 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto-
TPM (Trusted Platform Module ) - 1 x SPI TPM Header
Bundled Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Manufacturing Warranty 3 years
