| Supported CPU |
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration |
| Chipset |
Intel Z890 |
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support |
| Form Factor |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB |
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| PCI |
CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode 1 x PCIe 4.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) |
| M.2 Socket |
CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
| Type |
Dual Channel DDR5 Memory Technology |
| Slots |
4 x DDR5 DIMM Slots |
| Supported Memory |
Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC) Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) 3.0x |
| Maximum Memory |
256GB |
| Graphics |
Intel® Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz* |
| HDMI |
1 x HDMI |
| Display Port (s) |
1 x DisplayPort 1.4 |

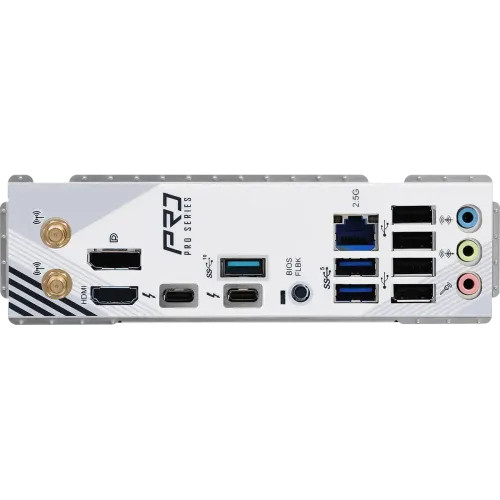

| USB (s) |
CPU: - 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front) |
| LAN Port (s) |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Wireless Communication module |
802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO |
| Supported Storage |
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors |
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header |
| TPM (Trusted Platform Module ) |
1 x SPI TPM Header |
| Special Features |
Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker |
| Bundled Software |
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
| Manufacturing Warranty |
3 Year Warranty |
