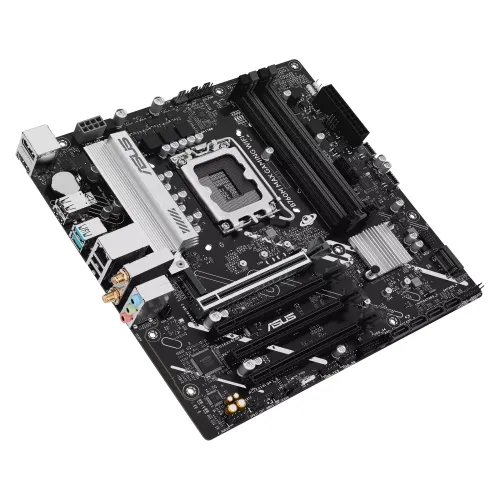

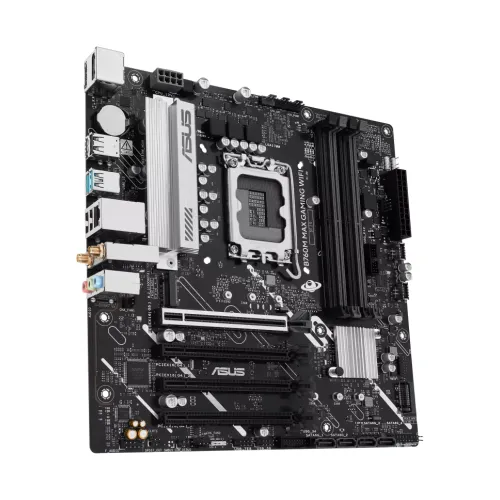

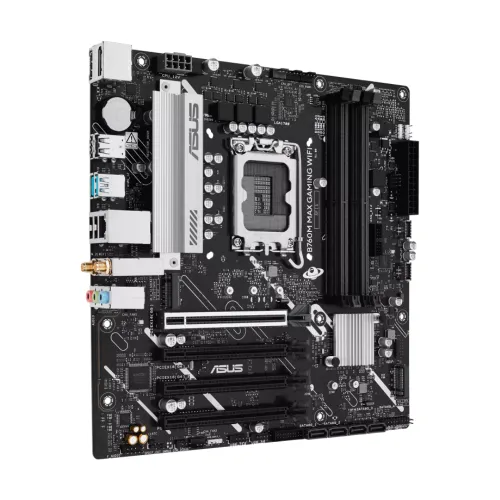

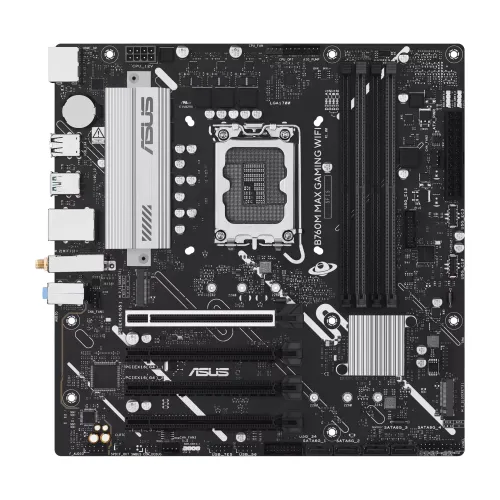

ASUS B760M MAX GAMING WIFI mATX Motherboard

Price: ৳21,700 ৳23,330 Regular Price: ৳23,330 Status: In Stock Product Code: 1792386584137 Brand: Asus

Key Features

Key Features Model: B760M MAX GAMING WIFI Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700) Supported RAM: 4 x DIMM, 7200+ (OC), Max. 192GB, DDR5 Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports Features: Realtek 1Gb Ethernet, Wi-Fi 6, Bluetooth 5.3

399 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for Intel Core14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
PCI Intel® Core™ Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slot (support x1 mode)
M.2 Socket 3 x M.2
Type DDR5
Slots 4 x DIMM
Supported Memory 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory Max. 192GB
Graphics 1 x DisplayPort** 1 x HDMITM port*** * Graphics specifications may vary between CPU types
HDMI 1 x HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4
USB (s) Rear USB (Total 6 ports) 2 x USB 10Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet ASUS LANGuard
Wireless Communication module Wi-Fi 6 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.3 *The Bluetooth version may vary,
Supported Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
RAID * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 5Gbps port (support USB Type-C®) 2 x USB 2.0 header support 4 additional USB 2.0 ports Miscellaneous 3 x Aura Addressable Gen 2 headers 1 x Clear CMOS header 1
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool AURA Sync - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manufacturing Warranty 3 years
