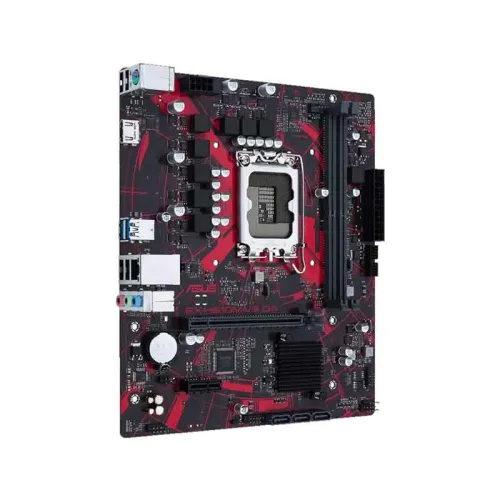

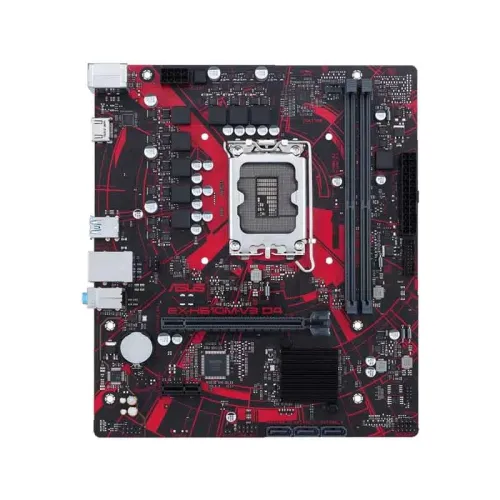

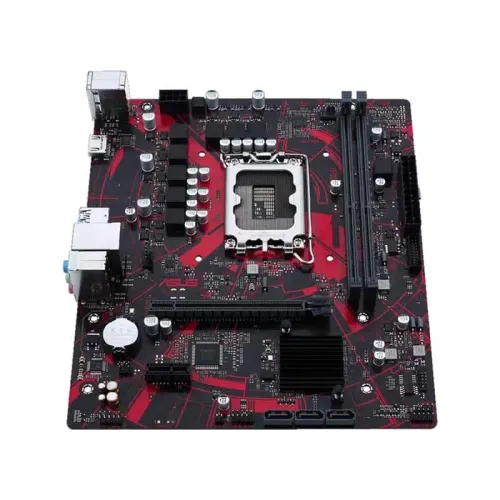

Asus EX-H610M-V3 D4 mATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584166 Brand: Asus

Key Features

Key Features Model: EX-H610M-V3 D4 Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported Memory: 2 x DIMM, Max. 64GB, DDR4 Graphics Output: 1 x HDMI Realtek 1Gb Ethernet

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Type DDR4
Slots 2 x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
HDMI 1 x HDMI port
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Supported Storage Total supports 3 x SATA 6Gb/s ports Intel H610 Chipset 3 x SATA 6Gb/s ports
Internal I/O Ports Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 G
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Anti-moisture coating - USBGuard
Manufacturing Warranty 3 years warranty
