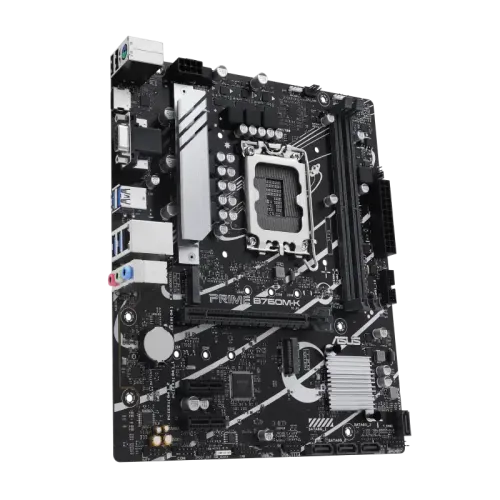

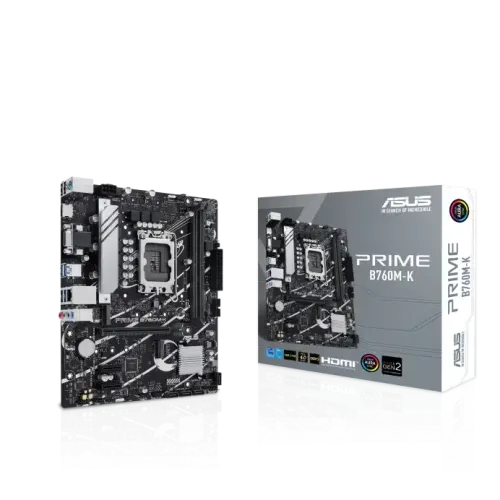

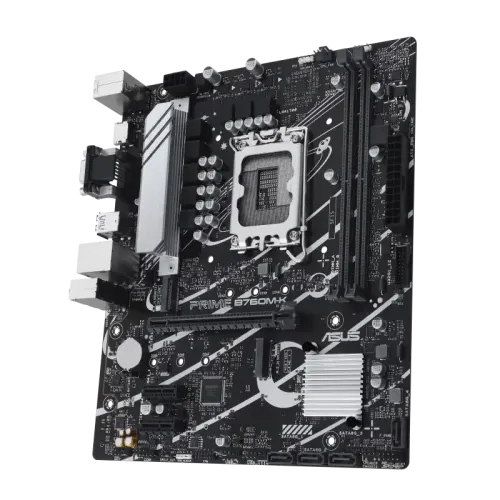

Asus PRIME B760M-K mATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584172 Brand: Asus

Key Features

Key Features Model: PRIME B760M-K Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700) Supported Memory: 2 x DDR5, Max. 96GB 8000(OC) Graphics Output: 1 x VGA port, 1 x HDMI Features: 1 x Realtek 2.5Gb Ethernet

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 2 x PCIe 4.0 x1 slots
Type DDR5
Slots 2 x DIMM
Supported Memory DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics 1 x VGA port 1 x HDMI port
HDMI 1 x HDMI port
VGA (s) 1 x VGA port

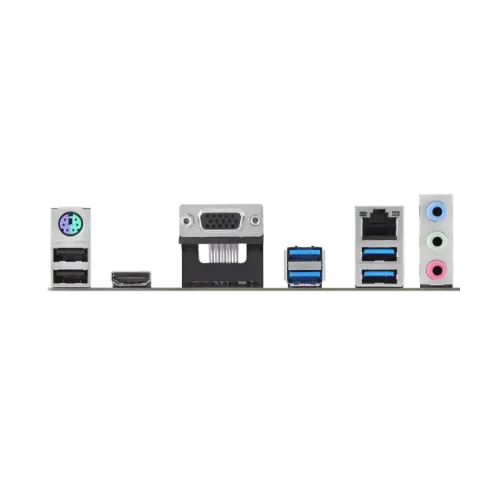

USB (s) Rear USB (Total 6 ports) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out hea
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - ProCool ASUS Thermal Solution - VRM heatsink design Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert - Power Saving AI Suite 3 - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manufacturing Warranty 3 years warranty
