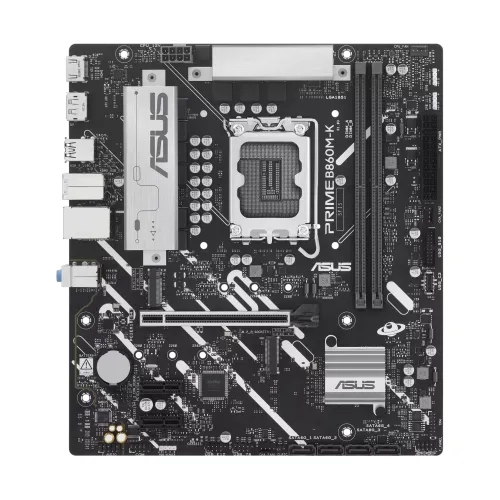

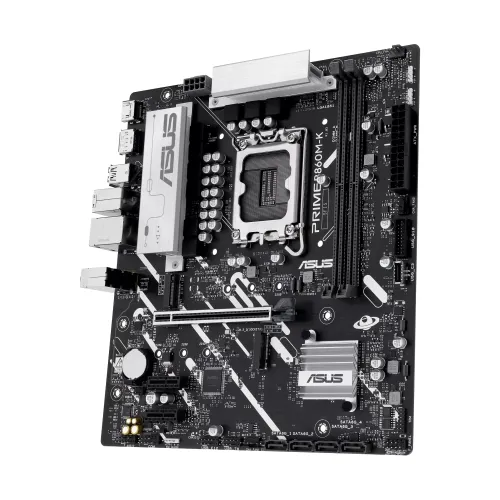

Asus PRIME B860M-K-CSM LGA 1851 micro-ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584173 Brand: Asus

Key Features

Key Features Model: PRIME B860M-K-CSM Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Supported RAM: 2x DDR5, Max 128GB, 8800+ MT/s (OC) Graphics Output: 1x DisplayPort, 1x HDMI Features: 2x M.2, Realtek 2.5Gb LAN

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket
Chipset Intel B860 Chipset
BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS
Form Factor micro-ATX Form Factor 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
PCI Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 4.0 x16 slot Intel® B860 Chipset 2 x PCIe 4.0 x1 slots
M.2 Socket Total supports 2 x M.2
Type DDR5
Slots 2 x DIMM
Supported Memory Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture DIMM Fit Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory 128GB
Graphics 1 x DisplayPort** 1 x HDMI™ port*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors' or graphic cards' resolution.
HDMI 1 x HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4

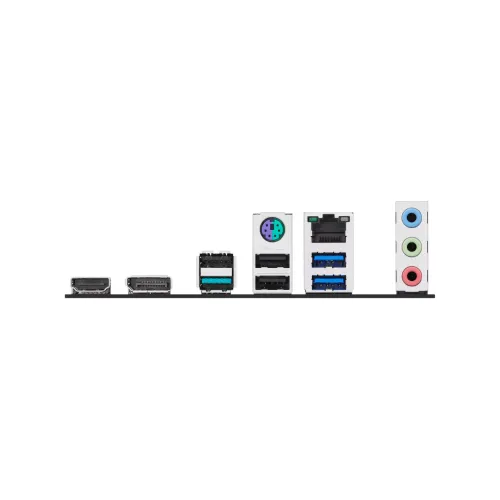

USB (s) Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 3 x USB 2.0 ports (3 x Type-A)** Front USB (Total 7 ports) 1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports** * USB Type-C® power delivery output: max. 5V/3A. ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Internal I/O Ports Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 2 x Addressable Gen2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x CO
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
Special Features ASUS 5X PROTECTION III - DIGI+VRM - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Manufacturing Warranty 3 Year warranty
