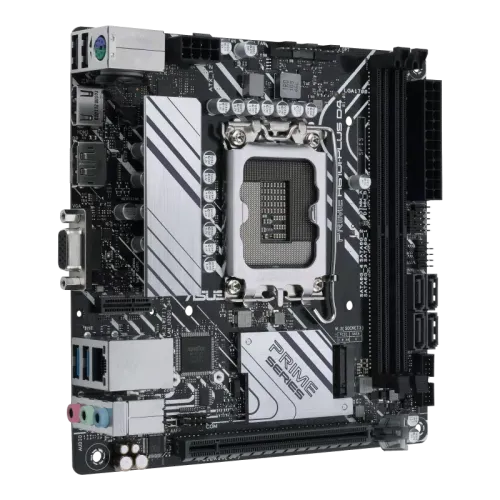

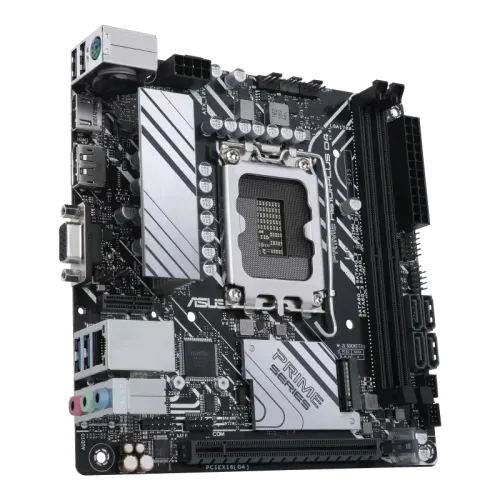

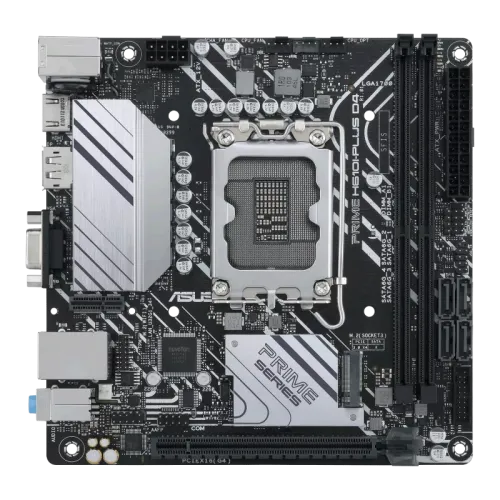

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

Price: ৳16,860 ৳18,450 Regular Price: ৳18,450 Status: In Stock Product Code: 1792386584127 Brand: Asus

Key Features

Key Features Model: PRIME H610I-PLUS D4 Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported RAM: 2x DDR4, Max 64GB 3200 Graphics Output: 1x HDMI port, 1x DisplayPort, 1 x D-Sub Features: 1 x Realtek 1Gb Ethernet

399 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
PCI Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
M.2 Socket 1 x M.2 slots
Type DDR4
Slots 2x DIMM
Supported Memory 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory Max. 64GB
Graphics Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz.
HDMI 1 x HDMI port
D-Sub (s) 1 x D-Sub
USB (s) Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet port
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMB
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Manufacturing Warranty 3 years warranty
