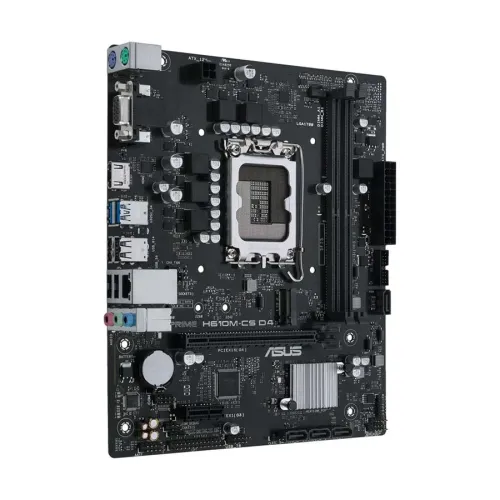

Asus PRIME H610M-CS D4 mATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584169 Brand: Asus

Key Features

Key Features Model: PRIME H610M-CS D4 Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700) Supported Memory: 2 x DIMM, Max. 64GB, DDR4 Graphics Output: 1 x VGA, 1 x HDMI Features: 1 x Realtek 1Gb Ethernet

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors* Supports up to Intel 65W CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor 8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
PCI Intel Core Processors (14th & 13th & 12th Gen) 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
M.2 Socket 1 x M.2 slot
Type DDR4
Slots 2 x DIMM
Supported Memory 3200MHz/ 3000MHz/ 2933MHz/ 2800MHz/ 2666MHz/ 2400MHz/ 2133MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory Max. 64GB
Graphics 1 x VGA port 1 x HDMITM port** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports 4K@60Hz as specified in HDMITM 2.1.
HDMI 1 x HDMI port
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1(5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s) 1 x Realtek 1Gb Ethernet
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports
Internal I/O Ports Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT head
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot - Q-LED Core ASUS Thermal Solution - Aluminum heatsink design USBGuard
Bundled Software ASUS Exclusive Software Armoury Crate AI Suite 3 EPU DIGI+ VRM PC Cleaner ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manufacturing Warranty 3 years warranty
