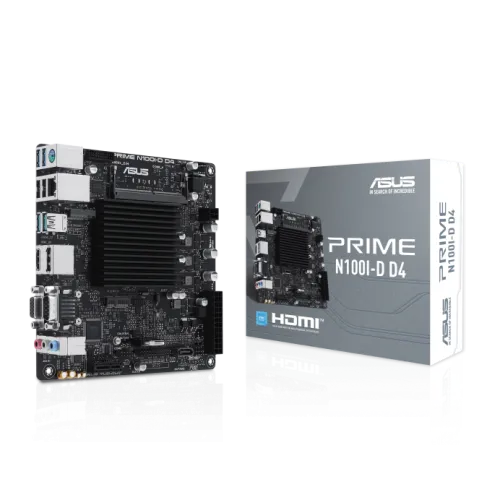

Asus PRIME N100I-D D4 Mini-ITX Motherboard

Price: ৳12,877 ৳13,890 Regular Price: ৳13,890 Status: In Stock Product Code: 1792386584123 Brand: Asus

Key Features

Key Features Model: PRIME N100I-D D4 Supported CPU: Onboard Intel Processor N100 Supported Memory: 1 x SO-DIMM, Max. 16GB, DDR4 Graphics Output: 1 x HDMI, 1 x VGA port, 1 x DisplayPort Features: 1 x Realtek 1Gb Ethernet

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Onboard Intel Processor N100 Supports Intel Turbo Boost Technology 2.0
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor Mini-ITX Form Factor 6.7 inch x 6.7 inch (17cm x 17cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
PCI 1 x PCIe 3.0 x1 slot
Type DDR4
Slots 1 x SO-DIMM
Supported Memory 3200/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* * We recommend that you use 16GB or less memory module.
Maximum Memory Max. 16GB
Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMITM port*** **Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMITM 2.1.
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)* 2 x USB 2.0 ports (2 x Type-A） Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports* 1 x USB 2.0 header supports 2 additional USB 2.0 ports * U32G1_E1 port, U32G1_E2 port, U32G1_E3 port and U32G1_E4 port share the bandwidth.
LAN Port (s) 1 x Realtek 1Gb Ethernet ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage Total supports 1 x M.2 slot and 1 x SATA 6Gb/s port 1 x M.2 Socket 3 with M key, type 2260/2280 (supports PCIe 3.0 x 2 mode) 1 x SATA 6Gb/s port
Internal I/O Ports Internal I/O Connectors Fan and cooling related 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 1 x SATA 6Gb/s port USB 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Chassis Intrude header 1 x LPT header 1 x
Special Features Proven Quality - ESD Guards - LANGuard - Overvoltage Protection - Stainless-Steel Back I/O ASUS Q-Design - Q-LED Core ASUS Thermal Solution - CPU heatsink design
Bundled Software ASUS Exclusive Software ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3
Manufacturing Warranty 3 years warranty
