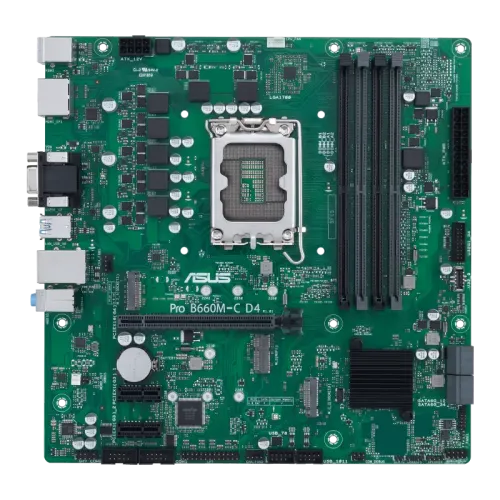

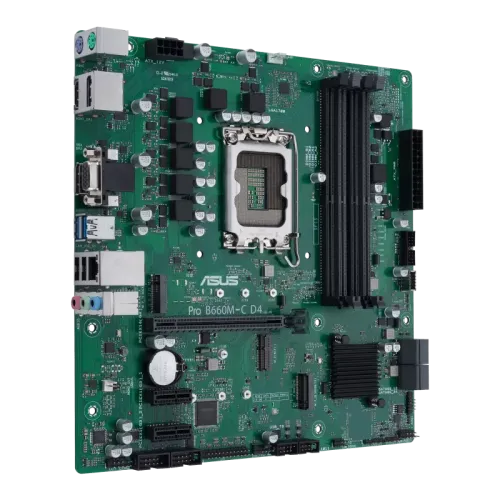

ASUS Pro B660M-C D4-CSM mATX Motherboard

Price: ৳16,250 ৳17,900 Regular Price: ৳17,900 Status: In Stock Product Code: 1792386584126 Brand: Asus

Key Features

Key Features Model: Pro B660M-C D4-CSM Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700) Supported RAM: 4x DDR4, Max 128GB Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI Features: 1 x Intel 1Gb Ethernet

399 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel B660 Chipset
BIOS 128Mb Flash ROM
Form Factor microATX 24.4cm x 24.4cm
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
PCI Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 2 x PCIe 3.0 x1 slots
Type DDR4
Slots 4 x DIMM slots
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem
Maximum Memory 128GB
Graphics 2 x DisplayPort** 1 x D-Sub port 1 x HDMI port ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
HDMI 1 x HDMI
Display Port (s) 2 x DisplayPort
D-Sub (s) 1 x D-Sub
USB (s) Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately.
Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Internal I/O Ports Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio he
Special Features ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - Q-LED Core - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit - Anti-Moisture - 24/7 Reliability - Overcurrent Protection TPM IC onboard
Bundled Software ASUS Exclusive Software IT Management software supported - ASUS Control Center Express(ACCE)
Manufacturing Warranty 3 Years
