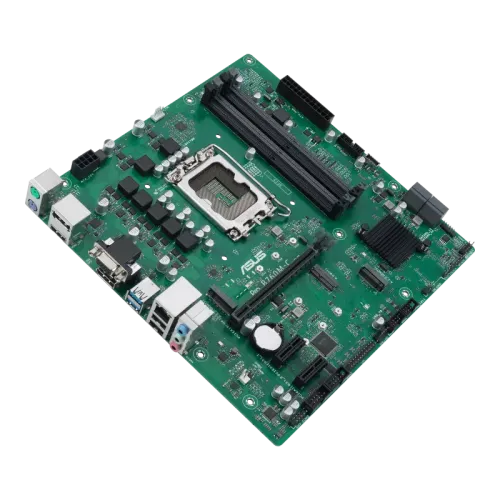

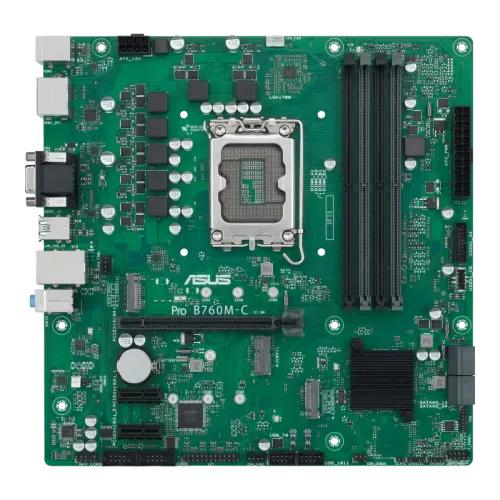

ASUS PRO B760M-C-CSM Micro-ATX Motherboard

Price: ৳16,999 ৳18,340 Regular Price: ৳18,340 Status: In Stock Product Code: 1792386584128 Brand: Asus

Key Features

Key Features Model: PRO B760M-C-CSM Supported CPU: 14th 13th Gen & 12th Gen Processors (LGA1700) Supported Memory: 4 x DIMM, Max. 192GB, DDR5 6200(OC) Graphics Output: 2 x DisplayPort, 1 x VGA, 1 x HDMI Features: 1 x Intel 1Gb Ethernet

399 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel B760 Chipset
BIOS 128Mb Flash ROM
Form Factor mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
PCI Intel 13th & 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B760 Chipset 2 x PCIe 3.0 x1 slots
Type DDR5
Slots 4 x DIMM
Supported Memory DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Optimem II
Maximum Memory Max. 192GB
Graphics 2 x DisplayPort** 1 x VGA port 1 x HDMI port*** ** Support max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
HDMI 1 x HDMI
Display Port (s) 2 x DisplayPort
VGA (s) 1 x VGA port
USB (s) Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port (s) 1 x Intel 1Gb Ethernet ASUS LANGuard
Wireless Communication module M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.
Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Internal I/O Ports Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (suppports USB Type-C®) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio h
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Special Features ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS EZ DIY - Box Headers Bespoke Motherboard Design & Business Focused Features - ASUS Self Recovering BIOS - ASUS Event Log - ASUS Commercial BIOS kit* - Anti-Moisture Coating - 24/7 Reliability - Overcurrent Protection
Bundled Software ASUS Exclusive Software IT Management software supported - ASUS Control Center Express (ACCE)
Manufacturing Warranty 3 years
