| Supported CPU |
Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors* Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset |
Intel B760 Chipset |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor |
Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Audio |
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Sur |
| PCI |
Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot |
| Type |
DDR5 |
| Slots |
2 x DIMM |
| Supported Memory |
7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
| Maximum Memory |
Max. 96GB |
| Graphics |
1 x DisplayPort** 1 x HDMI*** * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1. |
| HDMI |
1 x HDMI |
| Display Port (s) |
1 x DisplayPort |
| USB (s) |

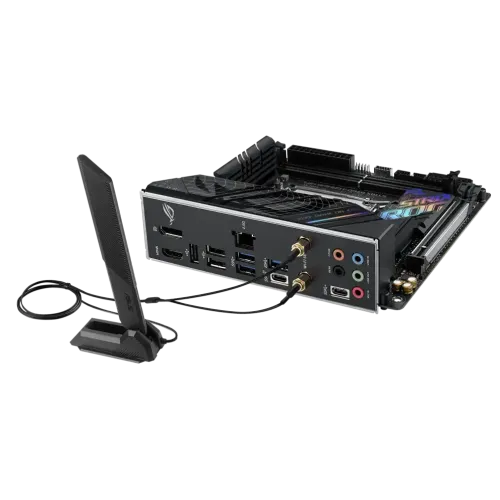

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| LAN Port (s) |
1 x Intel 2.5Gb Ethernet ASUS LANGuard |
| Wireless Communication module |
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
| Supported Storage |
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
| RAID |
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Internal I/O Ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS heade |
| Special Features |
Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header |
| Bundled Software |
ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASU |
| Manufacturing Warranty |
3 years |
