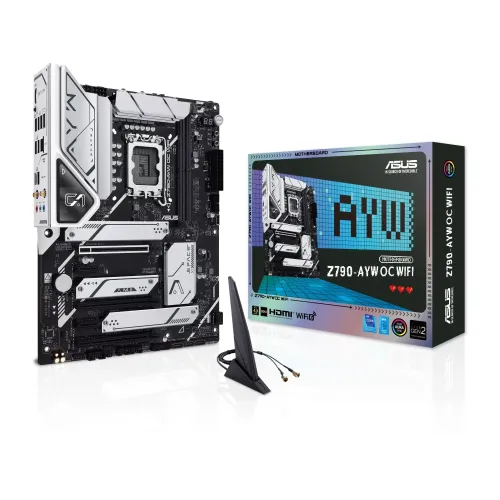

ASUS Z790-AYW OC WIFI LGA1700 ATX Motherboard

Price: ৳39,999 ৳43,290 Regular Price: ৳43,290 Status: In Stock Product Code: 1792386584149 Brand: Asus

Key Features

Key Features Model: Z790-AYW OC WIFI Supported CPU: 14th, 13th & 12th Gen Processors (LGA1700) Supported RAM: 2 x DIMM, Max. 96GB, DDR5 8200+(OC) Graphics Output: 1 x HDMI Features: Realtek 2.5Gb Ethernet and Wi-Fi 6

499 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC
PCI Intel® Core™ Processors (14th & 13th & 12th Gen)* 1 x PCIe 4.0 x16 slot Intel® Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 2 x PCIe 4.0 x1 slots * Please check the PCIe
M.2 Socket Total supports 3 x M.2 slots
Type DDR5
Slots 2 x DIMM slots
Supported Memory DDR5 8200+(OC) 8000(OC) /7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual channel memory architecture Supports Intel® Extreme Memory Profile (XMP) memory module OptiMem II * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration
Maximum Memory 96GB
Graphics 1 x HDMI port Supports 4K@60Hz as specified in HDMI 2.1
HDMI 1 x HDMI 2.1
USB (s) Rear USB (Total 8 ports) 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)* Front USB (Total 9 ports) 1 x USB 10Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports* * USB_E1 port, USB_E2 port and USB_E6 port share the bandwidth. * USB_E3 port, USB_E4 port, USB_E7 port and USB_E8 port share the bandwidth.
LAN Port (s) 1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module Wi-Fi 6 (802.11 ax) Supports 2.4/5GHz frequency band Bluetooth v5.3
Supported Storage 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Internal I/O Ports Back Panel I/O Ports 2 x USB 10Gbps ports (1 x Type-A+1 x Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Special Features Extreme OC Kit - Start button ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-Slot - Q-Code ASUS Thermal Solution - M.2 heatsinks - VRM heatsinks design ASUS EZ DIY - BIOS FlashBack™ button - ProCool - Pre-mounted I/O shield Aura Sync - Addressable Gen 2 headers
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 -TurboV EVO -PC Cleaner -DIGI+ VRM ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) MyASUS UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Manufacturing Warranty 3 years
