MSI B760M PROJECT ZERO m-ATX Motherboard

Price: ৳23,999 ৳26,780 Regular Price: ৳26,780 Status: In Stock Product Code: 1792386583958 Brand: MSI

Key Features

Key Features Model: B760M PROJECT ZERO Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported RAM: 4x DDR5, Max 192GB Graphics Output: 1x HDMI, 1x DisplayPort Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E

399 Points Discount Points
Payment Options
1

Specifications

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket 1x M.2
Type DDR5
Slots 4x DIMM
Supported Memory Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory 192GB
Graphics Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz*
HDMI 1x HDMI 1.4
Display Port (s) 1x DisplayPort
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek 2.5Gbps LAN
Wireless Communication module Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

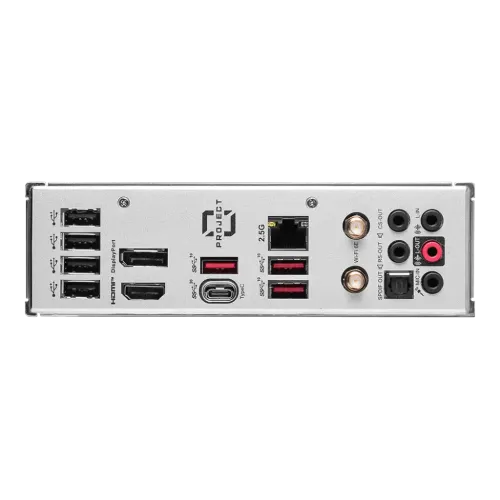

Internal I/O Ports Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi /
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED
Manufacturing Warranty 3 years
