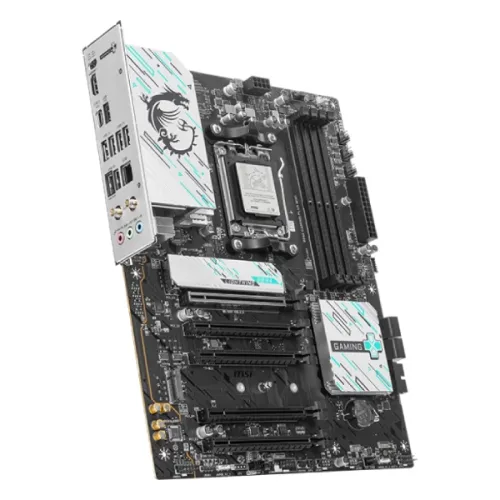

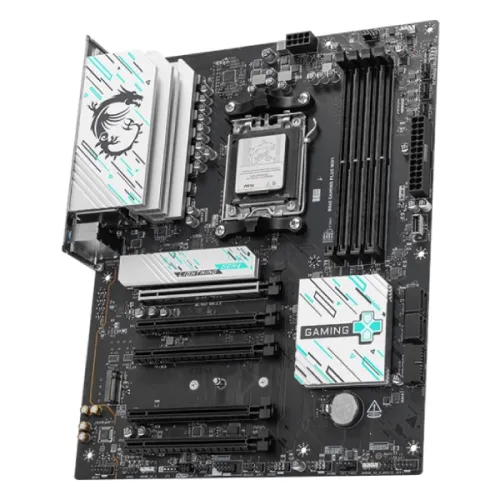

MSI B840 GAMING PLUS WIFI AMD AM5 ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584060 Brand: MSI

Key Features

Key Features Model: B840 GAMING PLUS WIFI Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5 Supported RAM: 4x DDR5, Dual Channel DDR5 8000+ MT/s (OC), Max 256GB Graphics Output: 1x HDMI 2.1, maximum resolution of 4K 60Hz Features: 2x M.2 Slot, Realtek 8125BG 2.5G LAN, Wi-Fi 7

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B840
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 7.1-Channel High Definition Audio
PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
Type DDR5
Slots 4x DDR5 UDIMM
Supported Memory Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB
HDMI 1x HDMI
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear)
LAN Port (s) Realtek® 8125BG 2.5G LAN
Wireless Communication module Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processor)
RAID Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
Manufacturing Warranty 3 Years
