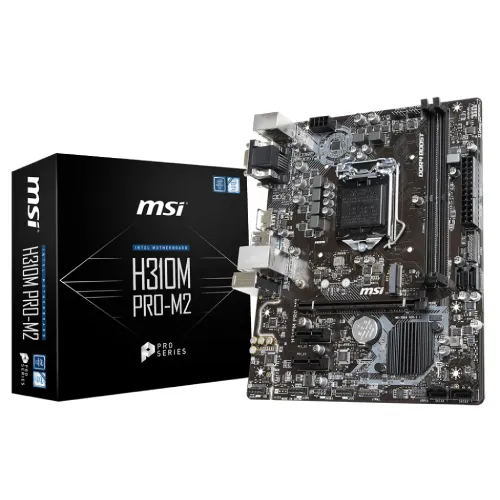

MSI H310M Pro-M2 Intel 9th Gen Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386583977 Brand: MSI

Key Features

Key Features Model: MSI H310M Pro-M2 Supports 9th/8th Gen Intel Core/Pentium Gold/Celeron processors for LGA 1151 socket Supports DDR4 Memory, up to 2666 MHz Graphics Output: 1x HDMI, 1x DVI, 1x VGA Features: Realtek ALC887 Codec, 1 x M.2 slot (Key M)

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket
Chipset Intel H310 Chipset
Form Factor m-ATX Form Factor 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
Audio 7.1-Channel High Definition Audio
PCI 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
M.2 Socket 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Type Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Slots 2 x DDR4 memory slots
Supported Memory Supports DDR4 2666/ 2400/ 2133 MHz
Maximum Memory 32GB
Graphics 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
HDMI 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz
VGA (s) 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
DVI-D (s) 1x DVI-D port, supports a maximum resolution of 1920x1200@60H
USB (s) Intel H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
LAN Port (s) 1 x Intel I219-V Gigabit LAN controller
Supported Storage 4 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x TPM module connector
Manufacturing Warranty 03 years Warranty
