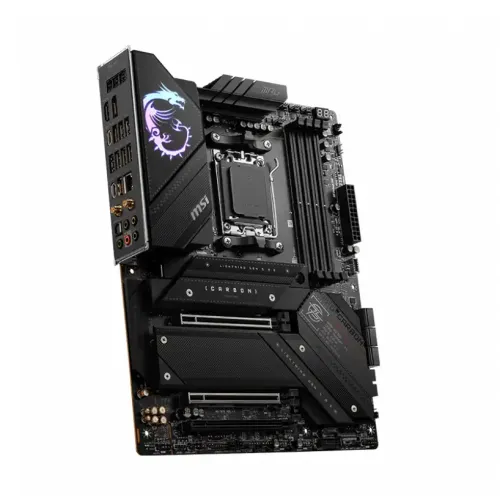

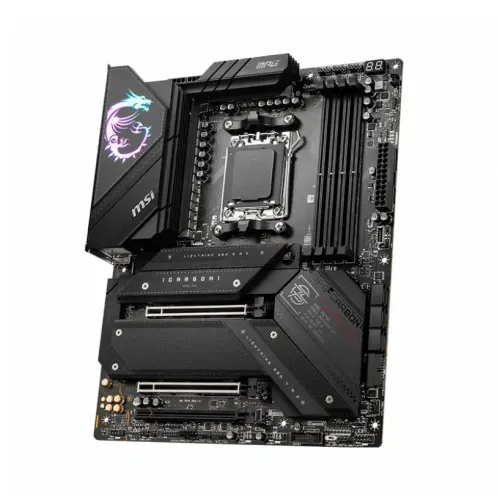

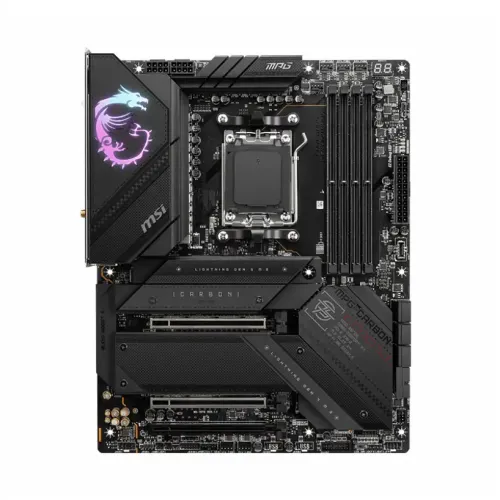

MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584075 Brand: MSI

Key Features

Key Features Model: MPG X670E CARBON WIFI Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 Supported RAM: 4x DDR5, Max 128GB Graphics Output: 1x HDM, 1x Display Port, 1x Type-C Display port Features: 2.5G LAN and Wi-Fi 6E Solution

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD X670
Form Factor ATX 304.8mmx243.84mm
Audio Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
PCI 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 3x PCIe 3.0 x1 slots
Type DDR5
Slots 4 DIMMs
Supported Memory Dual Channel DDR5
Maximum Memory 128GB
Graphics 1x HDMI Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz Supports AMD MULTI-GPU
HDMI 1x HDMI
Display Port (s) 1x Display Port

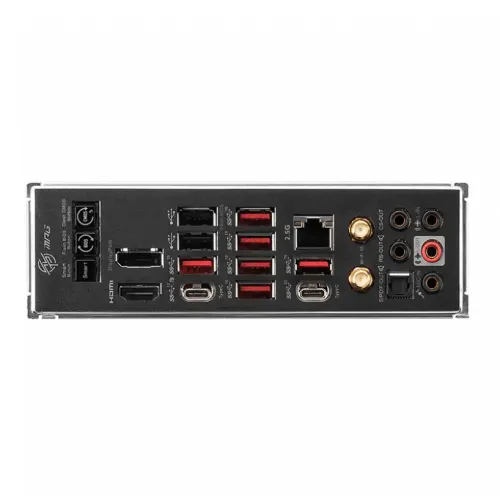

USB (s) 2x USB 2.0 ports (Rear) 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Front) 6x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear)
LAN Port (s) Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Manufacturing Warranty 3 Years
