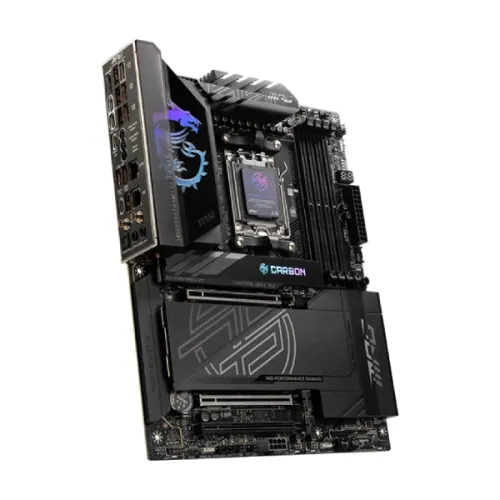

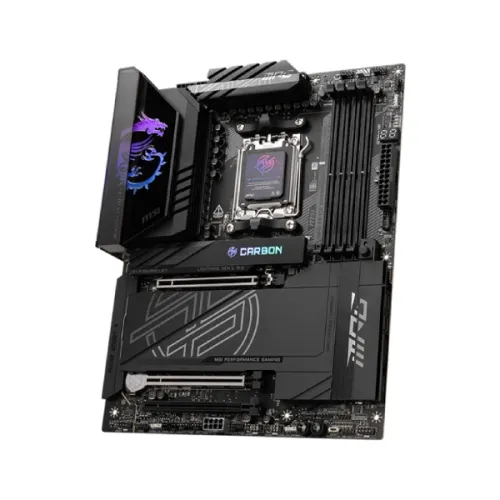

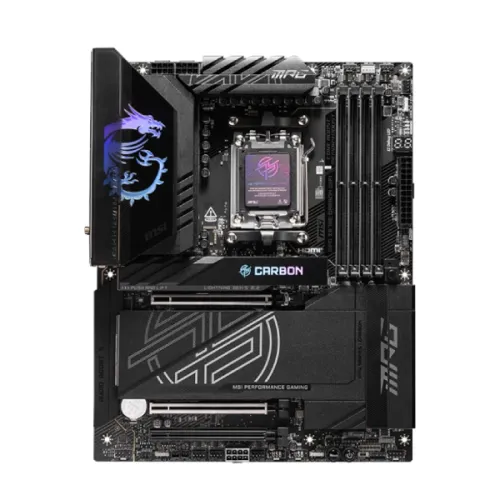

MSI MPG X870E CARBON WIFI AMD AM5 DDR5 ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584076 Brand: MSI

Key Features

Key Features Model: MPG X870E CARBON WIFI Supported CPU: Ryzen 9000/ 8000/ 7000 Series for Socket AM5 Supported RAM: 4x DDR5, Up to 8400-5600 (OC) MT/s Graphics Output: 1x HDMI, 2x Type-C DisplayPort Features: 1x 2.5G LAN, 1x 5G LAN, Wi-Fi 7, Bluetooth 5.4

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD X870E
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
PCI 3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x4 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4 * PCI_E1 & PCI_E2 & M.2_2 share the bandwidth, a
M.2 Socket 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8400+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory 256GB
Graphics 1x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
HDMI 1x HDMI
Display Port (s) 2x Type-C DisplayPort

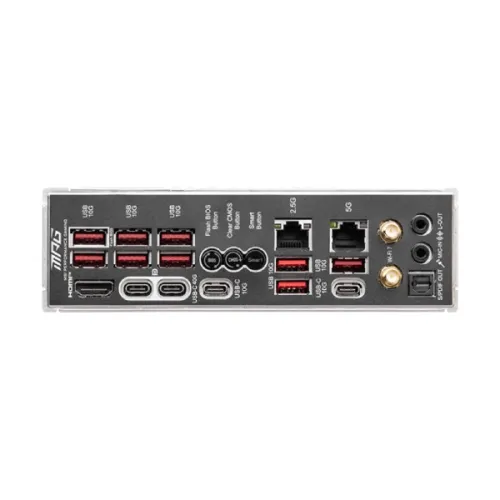

USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN Port (s) 1x Realtek 8126 5G LAN 1x Realtek 8125 2.5G LAN
Wireless Communication module Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 sl
RAID Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices Supports RAID 0, RAID 1 and Raid 10* for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
Manufacturing Warranty 3 Years
