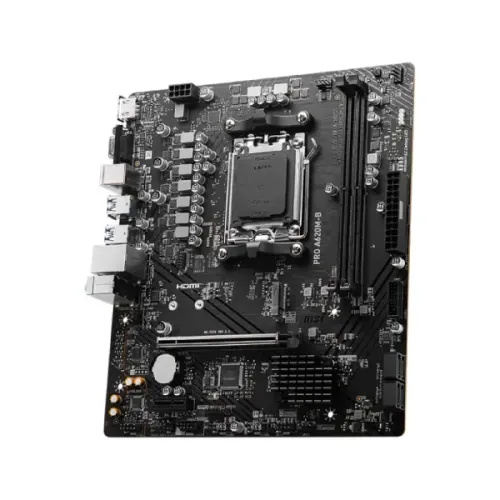

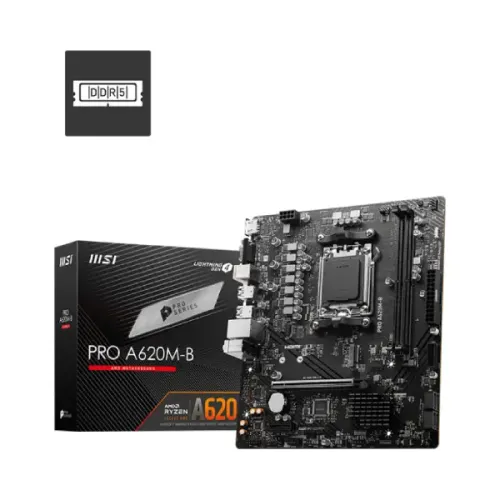

MSI PRO A620M-B AM5 mATX Motherboard

Price: ৳11,850 ৳12,650 Regular Price: ৳12,650 Status: In Stock Product Code: 1792386584019 Brand: MSI

Key Features

Key Features Model: PRO A620M-B Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 Supported RAM: 2x DDR5, up to 6800+(OC) MT/s Graphics Output: 1x HDMI, 1x VGA Features: Realtek RTL8125BG 5G LAN

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD A620
Form Factor mATX 215mmx243.84mm
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot Supports x16 (For Ryzen 9000 and 7000 Series processors) Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2
Type DDR5
Slots 2x DIMMs
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6000+ MHz
Maximum Memory 128GB
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
HDMI 1x HDMI
VGA (s) 1x VGA
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN Port (s) Realtek RTL8125BG 2.5G LAN
Supported Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED
Manufacturing Warranty 3 Years
