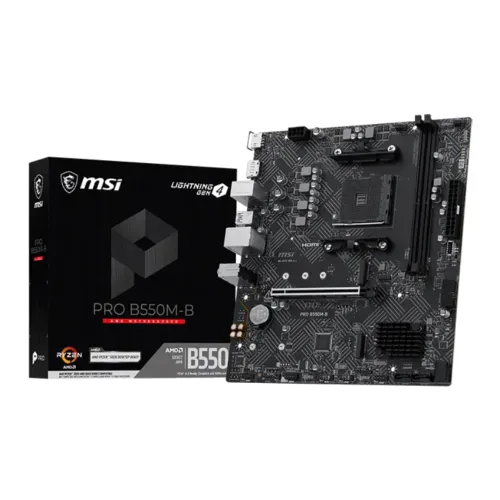

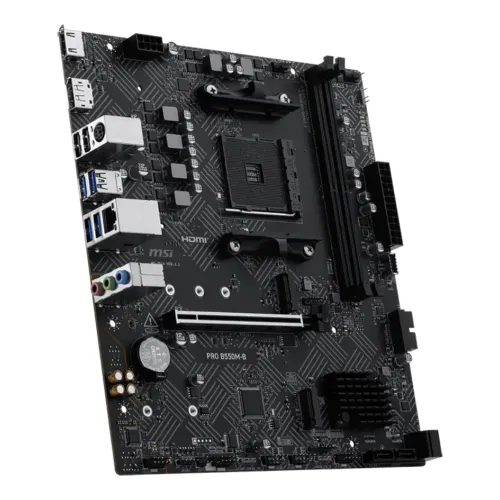

MSI PRO B550M-B AMD AM4 mATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584041 Brand: MSI

Key Features

Key Features Model: PRO B550M-B Supported CPU: Ryzen 5000 & 3000 Series and Ryzen 4000 G-Series Supported RAM: 2 x DDR4 slots, Max 64GB, up to 4600+ MHz Graphics Output: 1x HDMI 2.1, 1x DP 1.2 Features: 2x M.2 SSD Slot, Realtek 1Gbps LAN

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4
Chipset AMD B550
Form Factor mATX 220mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
Type DDR4
Slots 2x DDR4
Supported Memory Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Max. overclocking frequency: • 1DPC 1R Max speed up to 4600+ MHz • 1DPC 2R Max speed up to 3866+ MHz
Maximum Memory up to 64GB
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Supports DP 1.2, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
HDMI 1x HDMI 2.1 port
Display Port (s) 1x DisplayPort 1.2

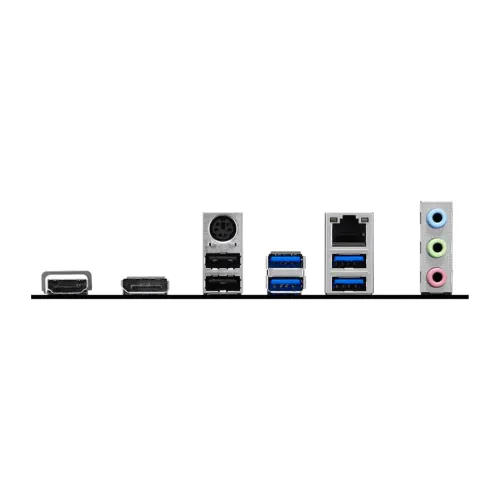

USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN Port (s) 1 x Realtek RTL8111H 1Gbps LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM module connector
Special Features 4x EZ Debug LED
Manufacturing Warranty 3 Years
