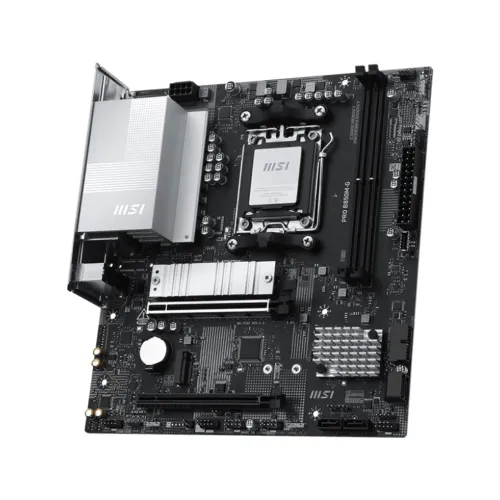

MSI PRO B850M-G AM5 mATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584047 Brand: MSI

Key Features

Key Features Model: PRO B850M-G Supported CPU: AMD Ryzen 9000/8000/7000 Series for Socket AM5 Supported RAM: 2x DDR5 UDIMM, Up to 8200 (OC) MT/s Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4 Features: Realtek 8126VB 5G LAN, 7.1-Channel High Definition Audio

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B850
BIOS Flash BIOS Button
Form Factor mATX 226mmx243.84mm
Audio Realtek ALC897 7.1-Channel High Definition Audio
PCI 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
M.2 Socket 2x M.2
Type DDR5
Slots 2x UDIMM
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory 128GB
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126VB 5G LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot Supports up to PCIe 4.0 x4 Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Manufacturing Warranty 3 Years
