MSI PRO B860M-E LGA 1851 mATX Motherboard

Price: ৳18,299 ৳19,750 Regular Price: ৳19,750 Status: In Stock Product Code: 1792386583954 Brand: MSI

Key Features

Key Features Model: PRO B860M-E Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Supported RAM: 2x DDR5 UDIMM, Up to 9066 (OC) MT/s, Max 128GB Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4 Features: 2x M.2, Realtek 8126 5Gbps LAN, 7.1-Channel Audio

399 Points Discount Points
Payment Options
1

Specifications

Supported CPU Intel Core Ultra Processors (Series 2)
Chipset INTEL B860
Form Factor mATX 220mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
Type DDR5
Slots 2x UDIMM
Supported Memory Memory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9066+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
Maximum Memory 128GB
Graphics 1x HDMI 2.1 1x DisplayPort 1.4
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4

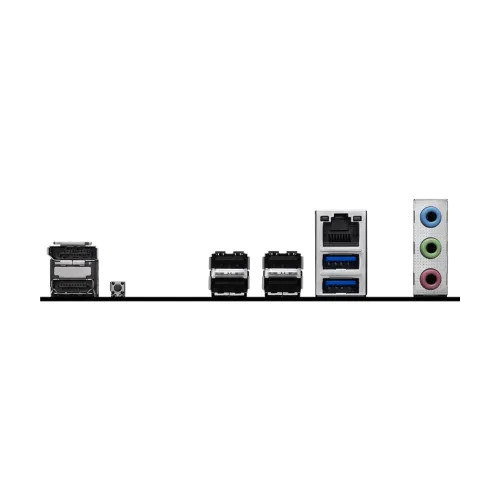

USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN Port (s) Realtek 8126 5Gbps LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED
Manufacturing Warranty 3 Years Warranty
