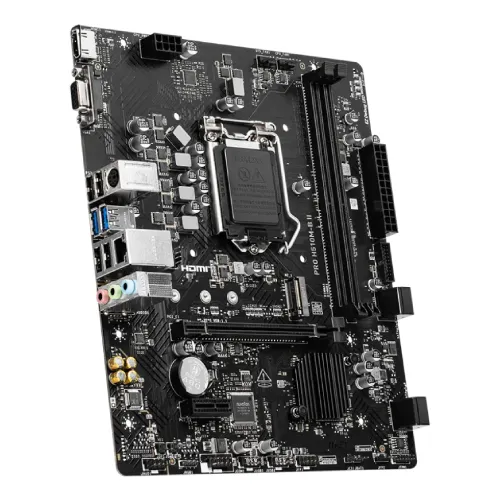

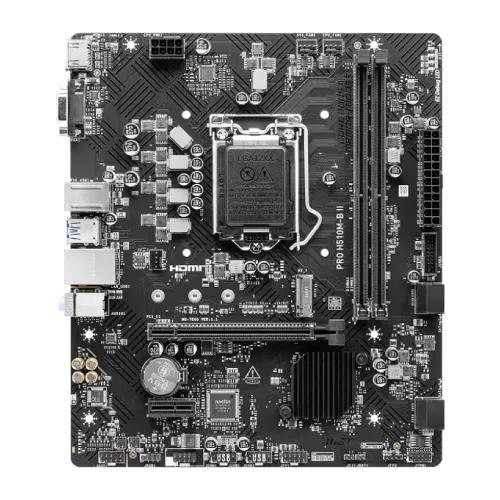

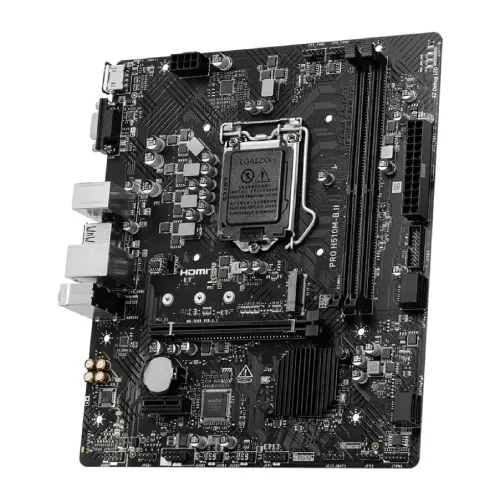

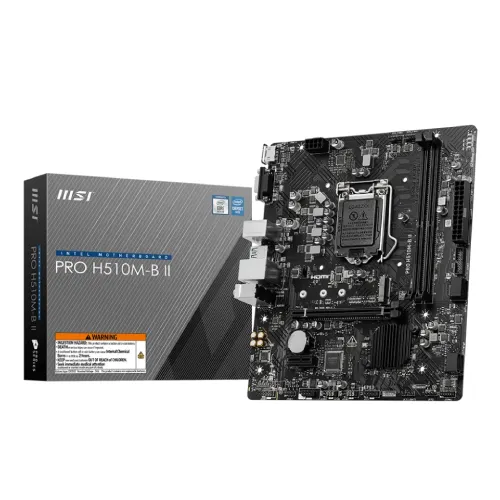

MSI PRO H510M-B II 10th Gen Micro-ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386583973 Brand: MSI

Key Features

Key Features Model: PRO H510M-B II Supported CPU: 10th Gen Intel processors for LGA 1200 Supported RAM: 2x DDR4, Max 64GB up to 2933MHz Graphics Output: 1x HDMI, 1x VGA Features: 1x M.2, Realtek 8111H Gigabit LAN

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
Chipset INTEL H470
Form Factor mATX 202mmx236mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2
Type DDR4
Slots 2
Supported Memory Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory 64GB
Graphics 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
HDMI 1x HDMI 1.4
Display Port (s) 1x VGA

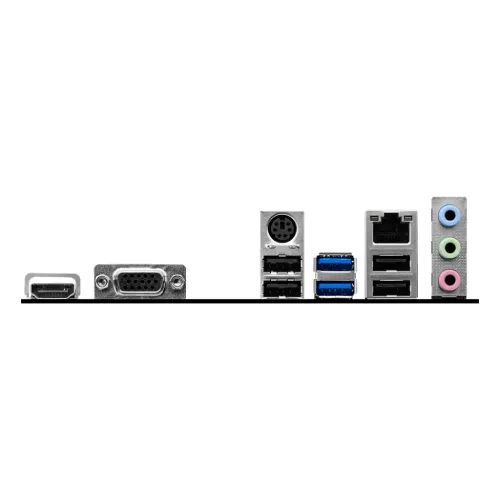

USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek 8111H Gigabit LAN
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED
Manufacturing Warranty 3 years Warranty
