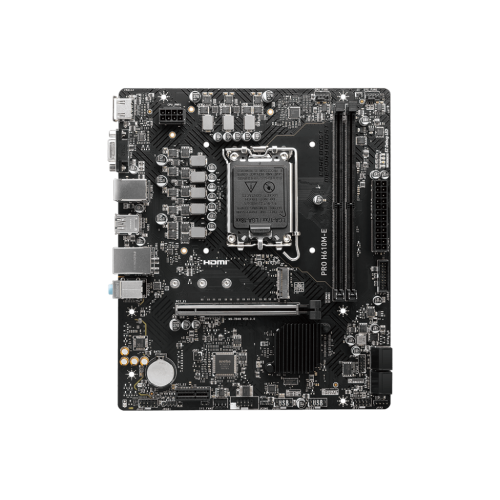

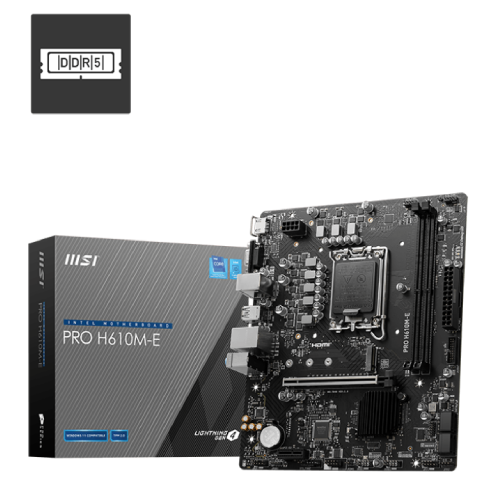

MSI PRO H610M-E mATX Motherboard

Price: ৳10,555 ৳11,390 Regular Price: ৳11,390 Status: In Stock Product Code: 1792386583946 Brand: MSI

Key Features

Key Features Model: PRO H610M-E Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported RAM: 2x DDR5, Max 96GB Graphics Output: 1x HDMI, 1x VGA Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX 200mmx236.16mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Type DDR5
Slots 2
Supported Memory Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory 96GB
Graphics Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
HDMI 1x HDMI 1.4 with HDR port
VGA (s) 1x VGA

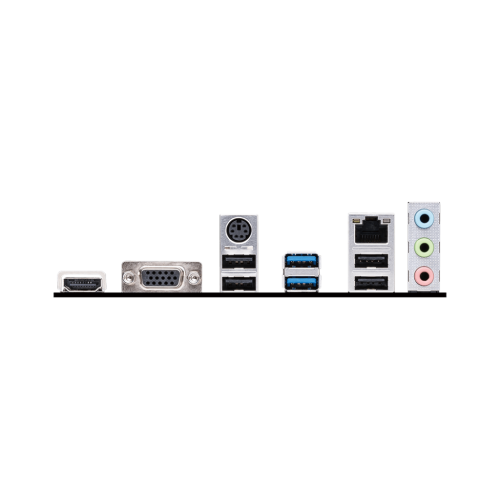

USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 1x 4-pin RGB LED connector 4x EZ Debug LED
Manufacturing Warranty 3 years
