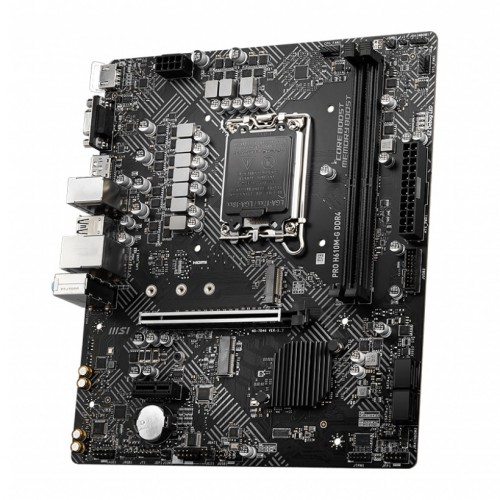

MSI PRO H610M-G DDR4 Micro-ATX Motherboard

Price: ৳10,098 ৳11,820 Regular Price: ৳11,820 Status: In Stock Product Code: 1792386583947 Brand: MSI

Key Features

Key Features Model: PRO H610M-G DDR4 Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supports DDR4 Memory, up to 3200(MAX) MHz Lightning Fast Experience: PCIe 4.0 Core Boost, Memory Boost, Audio Boost

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 Processor socket LGA1700
Chipset Intel H610 Chipset
Form Factor mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm)
Audio Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
Type DDR4
Slots 2x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Support up to 64GB
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA port
USB (s) Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s) 1x Intel I219V 1Gbps LAN controller
Supported Storage 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors
Internal I/O Ports POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
TPM (Trusted Platform Module ) 1x TPM module connector
Manufacturing Warranty 3 years
