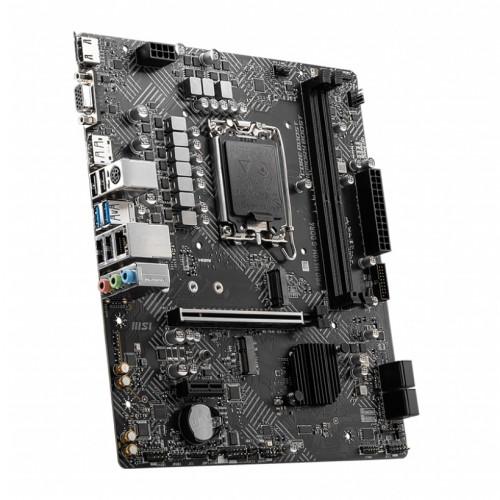

MSI PRO H610M-G DDR5 mATX Motherboard

Price: ৳10,760 ৳11,390 Regular Price: ৳11,390 Status: In Stock Product Code: 1792386583948 Brand: MSI

Key Features

Key Features Model: PRO H610M-G Supports 14th/ 13th/ 12th Gen, Intel Pentium Gold & Celeron Processors for LGA 1700 socket Supports DDR5 Memory, up to 5600 (MAX) MHz Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA Features: Realtek ALC897 Codec

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset Intel H610 Chipset
Form Factor mATX 211mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only
M.2 Socket 1x M.2
Type DDR5
Slots 2x DDR5 memory slots
Supported Memory Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory Support up to 96GB
Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort
VGA (s) 1x VGA port
USB (s) 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN Port (s) Intel I219V 1Gbps LAN controller
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features LED FEATURE: 4x EZ Debug LED
Manufacturing Warranty 3 years
