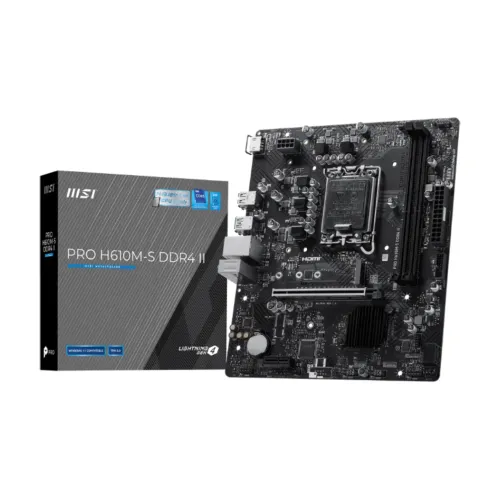

MSI PRO H610M-S DDR4 II mATX Motherboard

Price: ৳9,750 ৳10,470 Regular Price: ৳10,470 Status: In Stock Product Code: 1792386583942 Brand: MSI

Key Features

Key Features Model: PRO H610M-S DDR4 II Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700) Supported RAM: 2x DDR4, Max 64GB 3200 MHz Graphics Output: 2x HDMI 1.4 with HDR Features: 1x M.2, Realtek RTL8111H Gigabit LAN

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL H610
Form Factor mATX 200mmx236.16mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
Type DDR4
Slots 2
Supported Memory Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory 64GB
Graphics 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
HDMI 1x HDMI 1.4
USB (s) 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LAN Port (s) Realtek RTL8111H Gigabit LAN
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED Support for Windows 11 64-bit, Windows 10 64-bit
Manufacturing Warranty 3 years
