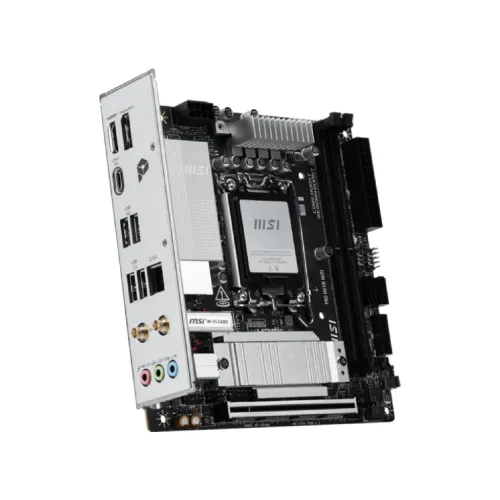

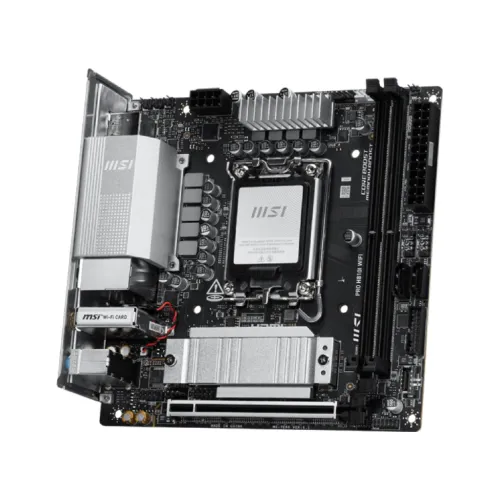

MSI PRO H810I WIFI LGA 1851 Mini-ITX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386583983 Brand: MSI

Key Features

Key Features Model: PRO H810I WIFI Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851 Supported RAM: 2x DDR5 UDIMM, Up to 6400 MT/s, Max 128GB Graphics Output: 1x HDMI 2.1, 1x DisplayPort 1.4 Features: 1x M.2, Intel I226 2.5Gbps LAN, Wi-Fi 7, Bluetooth 5.4

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset INTEL H810
Form Factor Mini-ITX 170mmx170mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
M.2 Socket 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
Type DDR5
Slots 2
Supported Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s
Maximum Memory 128GB
Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
HDMI 1x HDMI 2.1
Display Port (s) 1x DisplayPort 1.4
USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port (s) Intel I226 2.5Gbps LAN
Wireless Communication module Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Manufacturing Warranty 3 Year warranty
