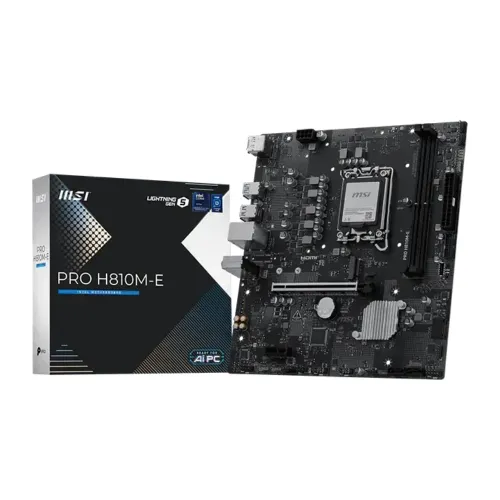

MSI PRO H810M-E DDR5 LGA1851 mATX Motherboard

Price: ৳13,555 ৳14,540 Regular Price: ৳14,540 Status: In Stock Product Code: 1792386583951 Brand: MSI

Key Features

Key Features Model: H810M-E Supported CPU: Intel Core Ultra Processors (Series 2), LGA1851 socket Supported RAM: 2x DDR5, up to 128GB, 6400 MT/s Graphics Output: 1x HDMI, 1 x DP Features: Realtek 8125D 2.5Gbps LAN

200 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports Intel Core Ultra Processors (Series 2) LGA 1851
Chipset Intel H810
BIOS Flash BIOS Button
Form Factor Micro-ATX
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio
PCI 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket 1x M.2
Type DDR5
Slots 2 x UDIMM
Maximum Memory 128GB
Graphics 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics
HDMI 1x HDMI 2.1
Display Port (s) 1 x DisplayPort 1.4
USB (s) 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
LAN Port (s) Realtek 8125D 2.5Gbps LAN
Supported Storage 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Manufacturing Warranty 3 Years Warranty
