MSI PRO Z790-S WiFi DDR5 ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386583991 Brand: MSI

Key Features

Key Features Model: PRO Z790-S Supported CPU: 14th/ 13th /12th Gen Intel Core / Pentium / Celeron processors (LGA 1700) Supported RAM: 4x DDR5, Max 192GB, 6600+MHz (OC) Graphics Output: 1x HDMI1.4 Features: Dual 2.5Gbps LAN with latest Wi-Fi 6E, DisplayPort1. 4

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports 14th/12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL Z790
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
PCI 2x PCI-E x16 slot 3x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Type DDR5
Slots 4
Supported Memory 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Maximum Memory 192GB
Graphics 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz
Display Port (s) 1x DisplayPort 1.4

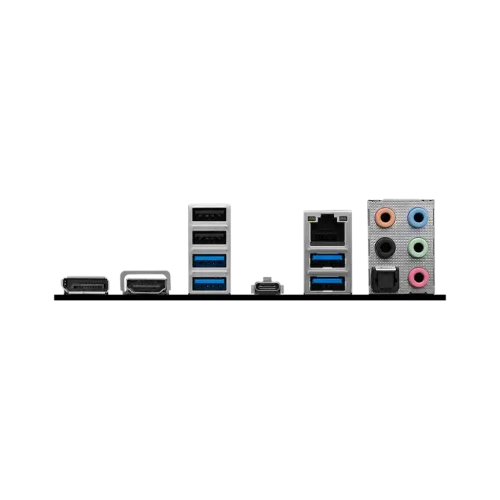

USB (s) 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s) Realtek® RTL8125BG 2.5Gbps LAN
Wireless Communication module Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Manufacturing Warranty 3 years
