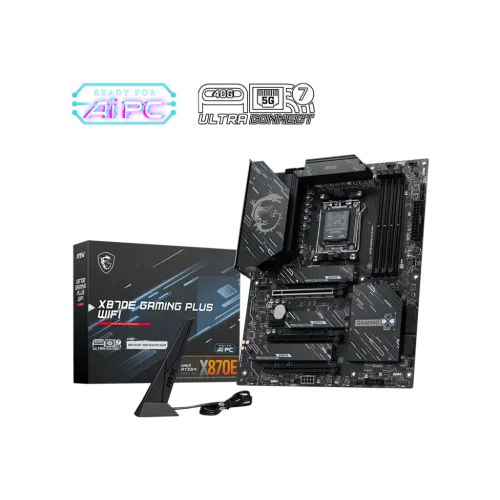

MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard

Price: Not listed Not listed Regular Price: Not listed Status: Out of Stock Product Code: 1792386584072 Brand: MSI

Key Features

Key Features Model: X870E GAMING PLUS WIFI Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5 Supported RAM: 4x DDR5, up to 8200 (OC) MT/s Graphics Output: 1x HDMI, 1x Type-C DisplayPort Features: Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4

0 Points Discount Points
Payment Options
1

Specifications

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD X870E
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 7.1-Channel High Definition Audio
PCI 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
M.2 Socket 3x M.2
Type DDR5
Slots 4x DIMMs
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. Overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz
HDMI 1x HDMI
Display Port (s) 1x Type-C DisplayPort

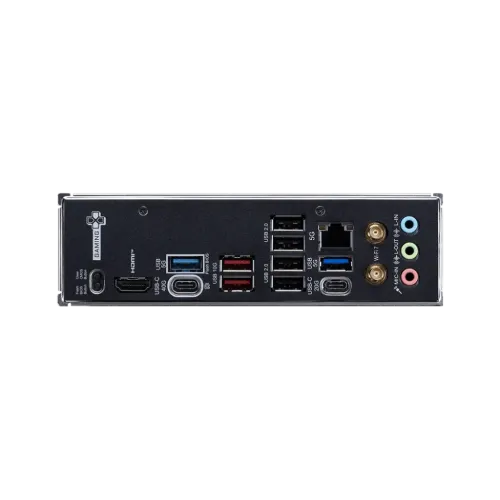

USB (s) 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN Port (s) Realtek 8126VB 5G LAN
Wireless Communication module Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Supported Storage M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
RAID • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Manufacturing Warranty 3 Years
